Dryer Drum Belt

Dryer Drum Belt

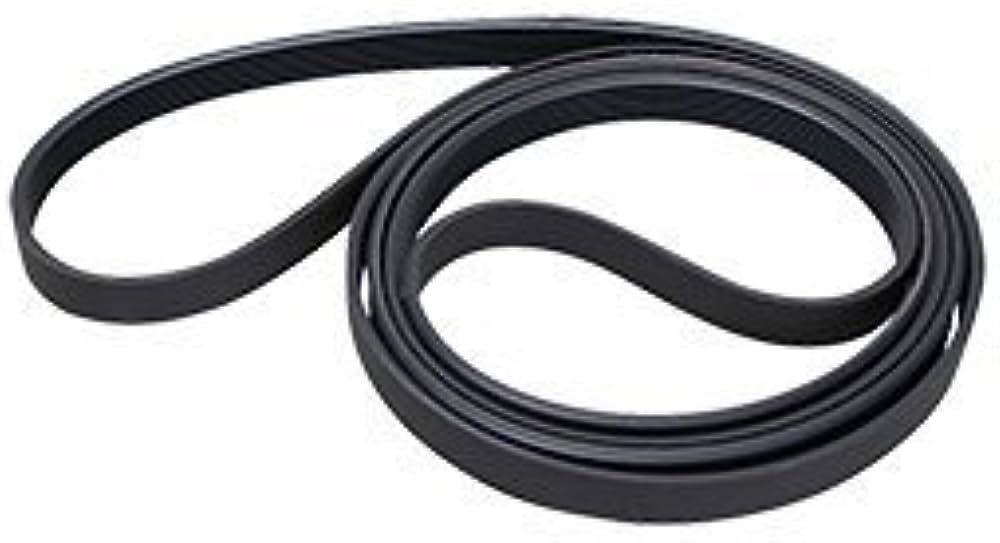

A dryer drum belt, also known as a drive belt or drum drive belt, is a crucial component of a clothes dryer that connects the drum to the dryer’s motor and allows the drum to rotate during the drying process. It’s responsible for transferring the rotational motion of the motor to the drum, ensuring that clothes tumble and circulate for even drying.

Function and Mechanism: The primary function of a dryer drum belt is to facilitate the rotation of the dryer drum. When the dryer is operating, the motor generates rotational power. This power is transferred to the drum through the belt, causing the drum to rotate and tumble the clothes inside.

The drum belt operates around a pulley system. One end of the belt is connected to the motor’s pulley, while the other end is looped around the drum’s hub or a tensioner pulley. As the motor spins, it drives the belt, which, in turn, causes the drum to rotate.

Importance and Maintenance: The dryer drum belt is a critical component that directly influences the operation of the appliance:

  1. Tumbling Action: The belt’s role in rotating the drum ensures that clothes tumble inside the drum, promoting even drying and preventing clothes from sticking together.
  2. Efficiency: A well-functioning belt contributes to the efficient operation of the dryer, as the drum rotation helps distribute heat evenly throughout the load.
  3. Durability: Dryer belts are made to withstand constant movement and tension. Proper maintenance and care can help extend the belt’s lifespan.

Signs of a Worn or Broken Drum Belt:

  1. No Drum Rotation: If the dryer’s motor is running but the drum is not rotating, it’s likely that the belt has broken or become detached.
  2. Unusual Noises: A damaged or misaligned belt can cause scraping or thumping noises as the drum tries to rotate.
  3. Loose Drum: If the drum feels loose or wobbles excessively when you manually spin it, the belt might be compromised.

Replacing a Dryer Drum Belt:

If you suspect that your dryer drum belt is worn or broken, you might consider the following steps:

  1. Unplug the Dryer: Disconnect the dryer from the power source to ensure safety.
  2. Access the Belt: Depending on your dryer model, you might need to remove the dryer’s front or rear panel to access the drum and belt area.
  3. Release Tension: If there’s a tensioner pulley, release tension by moving it away from the belt to provide enough slack for removal.
  4. Remove Old Belt: Gently slide the old belt off the drum and pulleys.
  5. Install New Belt: Loop the new dryer drum belt around the drum and position it onto the motor’s pulley and any tensioner pulleys according to the manufacturer’s diagram.
  6. Restore Tension: If applicable, move the tensioner pulley back into position to maintain proper tension on the belt.
  7. Test Rotation: Manually rotate the drum to ensure the belt is properly positioned and aligned.
  8. Reassemble the Dryer repair near me: If you removed any panels, reassemble the dryer in reverse order.

If you’re unsure about replacing the dryer drum belt yourself or encounter difficulties during the process, it’s recommended to seek the assistance of a professional appliance repair technician. A functioning drum belt is essential for the drum’s rotation and the overall performance of the dryer.
