Dishwasher Duct & venting

Dishwasher Duct & venting


Dishwasher ducts and venting are essential components in some dishwashers designed to improve drying performance and manage steam and moisture generated during the wash and rinse cycles. Not all dishwashers have these features, but they are commonly found in high-end or advanced models. Here’s what you need to know about dishwasher ducts and venting:

Dishwasher Ducts:

  1. Function: Dishwasher ducts, also known as drying ducts, are channels or tubes within the dishwasher’s interior that carry hot air from the dishwasher’s heating element to the dish racks. This hot air is used to help dry the dishes at the end of the wash cycle.
  2. Location: Ducts are typically located on the sides or at the back of the dishwasher’s interior. They direct hot air toward the dishes to aid in the drying process.
  3. Operation: During the drying phase of the dishwasher cycle, the heating element heats the air inside the dishwasher, and the ducts channel this hot air to the dish racks. The warm air helps evaporate moisture from the dishes, leaving them dry.

Dishwasher Venting:

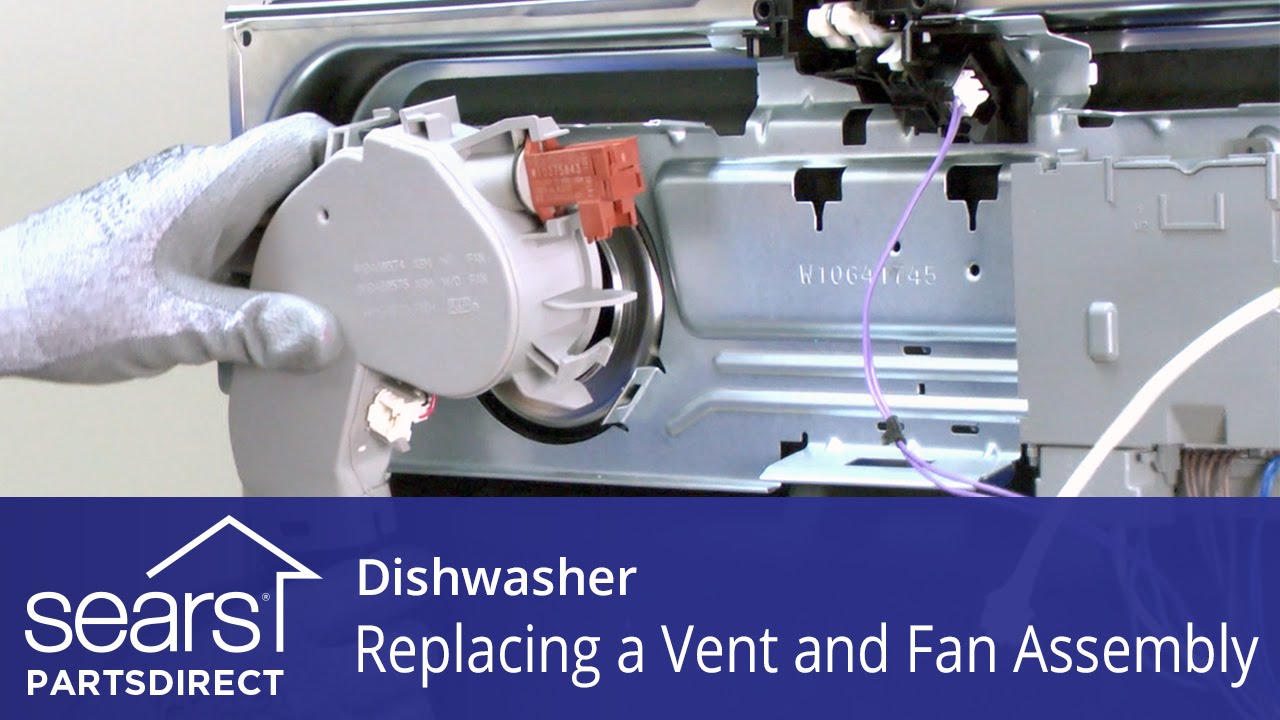

  1. Function: Dishwasher venting systems, such as vent fans or dry assist features, are designed to manage excess steam and moisture generated during the wash and rinse cycles. They help reduce the condensation on the dishwasher’s interior and improve drying performance.
  2. Location: Venting components can be found near the dishwasher’s door, often integrated into the door panel or located on top of the dishwasher.
  3. Operation: The venting system may include a fan that draws in cooler air from the kitchen, passes it over a condenser to remove moisture, and then expels the dried air back into the kitchen. Some dishwasher models use a passive vent design that allows steam to escape naturally.

Benefits of Dishwasher Ducts and Venting:

  1. Improved Drying: Ducts and venting systems can significantly improve drying performance, ensuring that dishes, glassware, and utensils come out of the dishwasher dry and ready to use.
  2. Reduced Condensation: By managing excess steam and moisture, venting systems help prevent condensation from forming on the dishwasher’s interior and on dishes during the drying process.
  3. Energy Efficiency: By aiding in the drying process, these features can lead to shorter cycle times and potentially lower energy consumption, as the dishwasher doesn’t need to run longer to achieve dry dishes.

Maintenance and Care:

  1. Cleaning: To maintain efficient drying and venting, clean the dishwasher’s ducts, vent components, and filters as recommended by the manufacturer. Remove any debris or residues that may accumulate in these areas.
  2. Check for Blockages: Periodically inspect the vent openings and ducts for any obstructions that might impede the flow of air.
  3. Filter Replacement: Some dishwashers with venting systems have filters that need to be cleaned or replaced regularly. Follow the manufacturer’s instructions for filter maintenance.
  4. Routine Maintenance: Keep the dishwasher’s interior and door gaskets clean to ensure a proper seal and minimize the escape of steam and moisture.

It’s worth noting that not all dishwashers repair have these ducts and venting systems, and their presence can vary depending on the dishwasher’s brand and model. If you have a dishwasher with these features, consult your dishwasher’s user manual for specific maintenance guidelines and recommendations.
