Fridge Door Switch

Fridge Door Switch

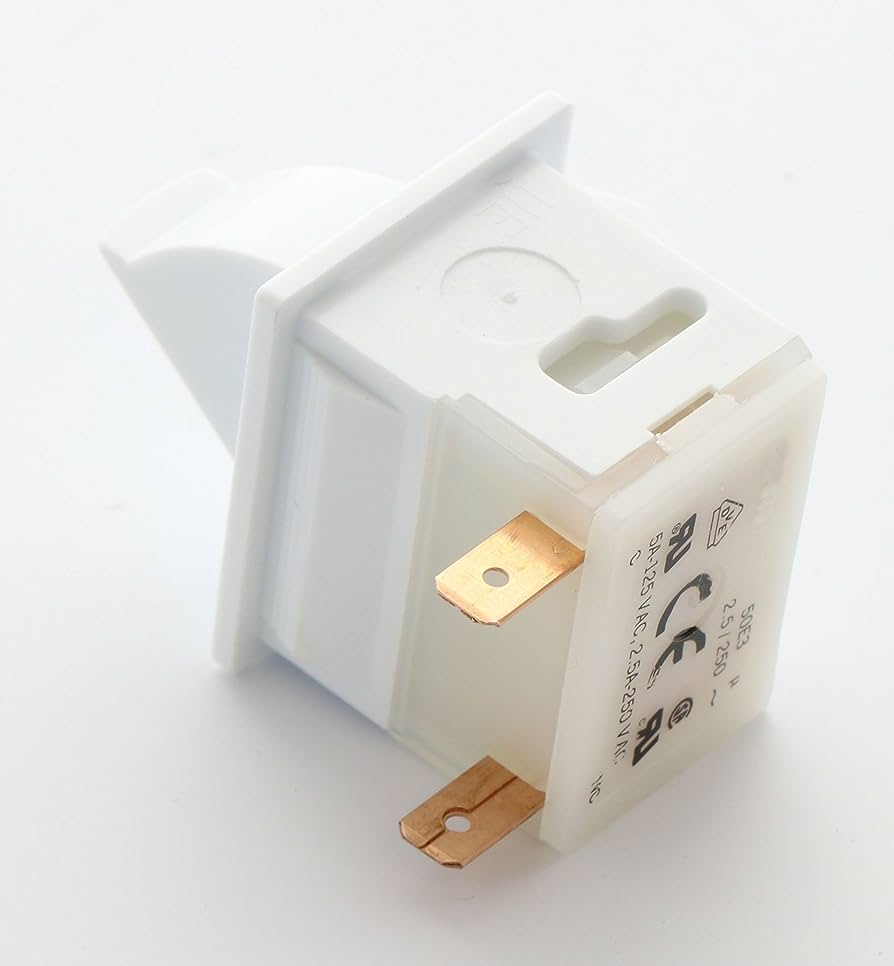

The fridge repair door switch, also known as a refrigerator door light switch, is a simple yet essential component in a refrigerator. Its primary function is to turn on the interior light when you open the refrigerator door and turn it off when you close the door. If your refrigerator’s interior light doesn’t come on when you open the door, or if the light remains on even when the door is closed, the door switch may be faulty and need replacement. Here are the steps to replace a defective fridge door switch:

Safety Precautions:

  • Ensure the refrigerator is unplugged or disconnected from the power source before starting any repair work.
  • Take proper safety precautions, such as wearing safety gloves and protective eyewear.

Tools and Materials You May Need:

  • Replacement fridge door switch (make sure it’s compatible with your refrigerator model)
  • Screwdriver (Phillips or flathead)
  • Pliers (optional)
  • Wire cutters and wire strippers
  • Electrical tape or wire connectors (optional)

Replacement Steps:

  1. Access the Door Switch:
    • Locate the door switch, which is typically located near the top of the refrigerator compartment. The switch may be covered by a plastic housing or shield.
  2. Disconnect the Power:
    • Ensure the refrigerator is unplugged or disconnected from the power source.
  3. Remove the Cover or Housing:
    • Depending on your refrigerator model, you may need to remove a cover or housing that protects the door switch. Use a screwdriver to remove any screws holding it in place. Some models may have a snap-on cover that you can carefully pry off.
  4. Disconnect the Old Door Switch:
    • Carefully disconnect the electrical wires connected to the old door switch. These wires may be connected with wire connectors or soldered connections. If connected with wire connectors, use pliers to remove them. If soldered, use wire cutters and wire strippers to carefully cut and strip the wires.
  5. Remove the Old Door Switch:
    • The old door switch is typically held in place by a mounting bracket or clips. Carefully remove any fasteners or clips to release the switch.
  6. Install the New Door Switch:
    • Position the new fridge door switch in the same location as the old one. Secure it using the same mounting bracket or clips.
  7. Reconnect Electrical Wires:
    • Reconnect the electrical wires to the new door switch, ensuring proper connections. Use electrical tape or wire connectors to secure the connections if necessary.
  8. Replace the Cover or Housing:
    • Put back the cover or housing that you removed to access the door switch. Secure it in place with screws or by snapping it into position.
  9. Plug In and Test:
    • Plug the refrigerator back in or reconnect it to the power source. Open and close the refrigerator door to ensure that the interior light turns on and off as expected with the new door switch.
  10. Monitor Operation:
    • Keep an eye on the refrigerator’s operation over the next several hours to ensure that the interior light functions correctly with the new switch.

Replacing a fridge door switch is usually a straightforward process. However, if you encounter any difficulties or if your refrigerator has a unique design, refer to your refrigerator’s manual for specific instructions related to your appliance’s make and model.
