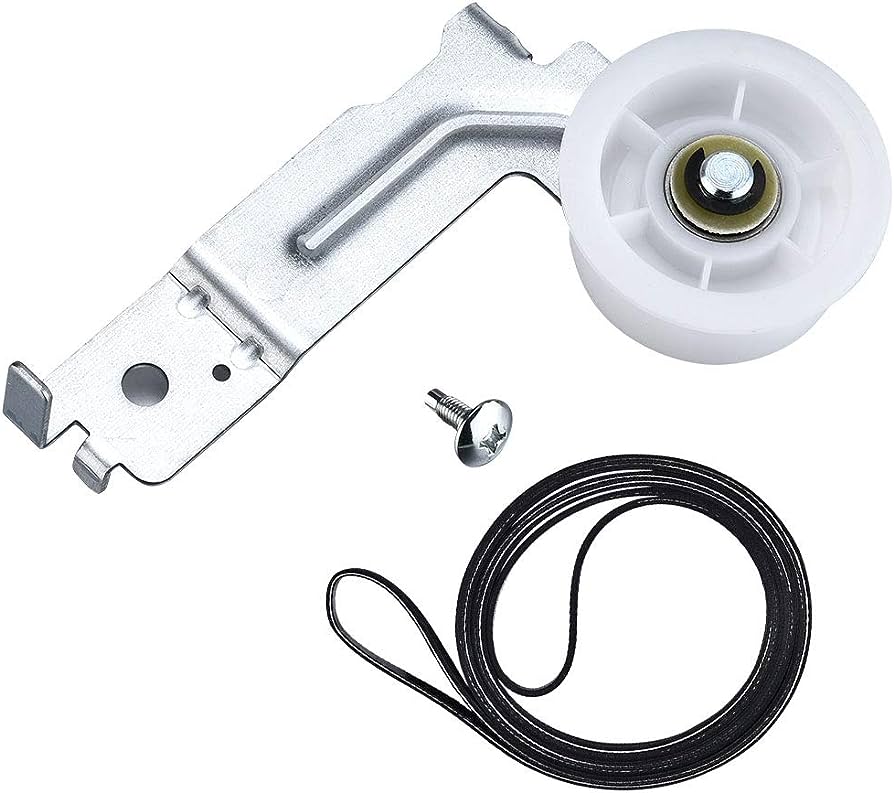

Dryer Idler Pulley

Dryer Idler Pulley



A dryer idler pulley, also known as a tensioner pulley or belt tensioner, is a crucial component in clothes dryers, particularly those with a drum belt system. It plays a significant role in maintaining proper tension on the dryer drum belt, which in turn ensures the smooth rotation of the drum during the drying process. The idler pulley helps prevent slack in the belt, facilitating consistent drum rotation and efficient drying.

Function and Operation: The primary function of a dryer idler pulley is to maintain tension on the drum belt, which is responsible for rotating the dryer drum. The operation involves several key steps:

  1. Belt Tension: The idler pulley is positioned near the motor pulley and the drum, typically on the bottom of the dryer. It maintains tension on the drum belt, preventing it from becoming loose or slipping.
  2. Adjustment: The idler pulley is designed with a spring mechanism that applies pressure to the belt, keeping it taut. This ensures that the belt remains in contact with both the motor pulley and the drum.
  3. Facilitating Drum Rotation: As the dryer’s motor spins the motor pulley, the tensioned belt transfers the rotational motion to the drum, causing it to rotate and tumble the clothes.

Importance and Efficiency: The dryer idler pulley is essential for maintaining proper dryer operation:

  1. Smooth Drum Rotation: The idler pulley’s function of keeping the belt taut ensures that the drum rotates smoothly and evenly. This prevents wobbling and uneven drying.
  2. Efficient Drying: Proper belt tension allows for efficient heat distribution throughout the drum, resulting in effective and even drying of laundry.
  3. Minimized Wear: The consistent tension provided by the idler pulley prevents excessive wear on the belt and other components.

Signs of a Malfunctioning Idler Pulley:

  1. Noisy Operation: A squeaking or squealing noise during dryer operation can indicate a worn or malfunctioning idler pulley.
  2. Drum Issues: If the drum is not rotating smoothly or if you notice the belt is loose, the idler pulley may be compromised.

Replacing a Faulty Idler Pulley:

If you suspect that the idler pulley in your dryer is worn or malfunctioning and needs replacement, you might consider the following steps:

  1. Unplug the Dryer: Disconnect the dryer from the power source to ensure safety.
  2. Access the Pulley: Depending on your dryer model, you might need to remove the dryer’s front or rear panel to access the idler pulley area.
  3. Release Belt Tension: If the idler pulley has a spring mechanism, release tension by moving it away from the belt to provide enough slack for removal.
  4. Remove Old Pulley: Gently detach the old idler pulley from its mounting location. Take note of how the components are positioned for proper reassembly.
  5. Install New Pulley: Attach the new idler pulley in the correct position, securing it with the appropriate mounting hardware.
  6. Restore Tension: If applicable, move the idler pulley back into position to maintain proper tension on the belt.
  7. Test Drum Rotation: Manually rotate the drum to ensure that the new idler pulley is functioning correctly and maintaining proper belt tension.
  8. Reassemble the Dryer: If you removed any panels, reassemble the dryer in reverse order.

If you’re unsure about replacing the dryer idler pulley yourself or encounter difficulties during the process, it’s recommended to seek the assistance of a professional appliance repair technician. A well-functioning idler pulley is essential for maintaining proper belt tension and ensuring smooth drum rotation in your dryer.
