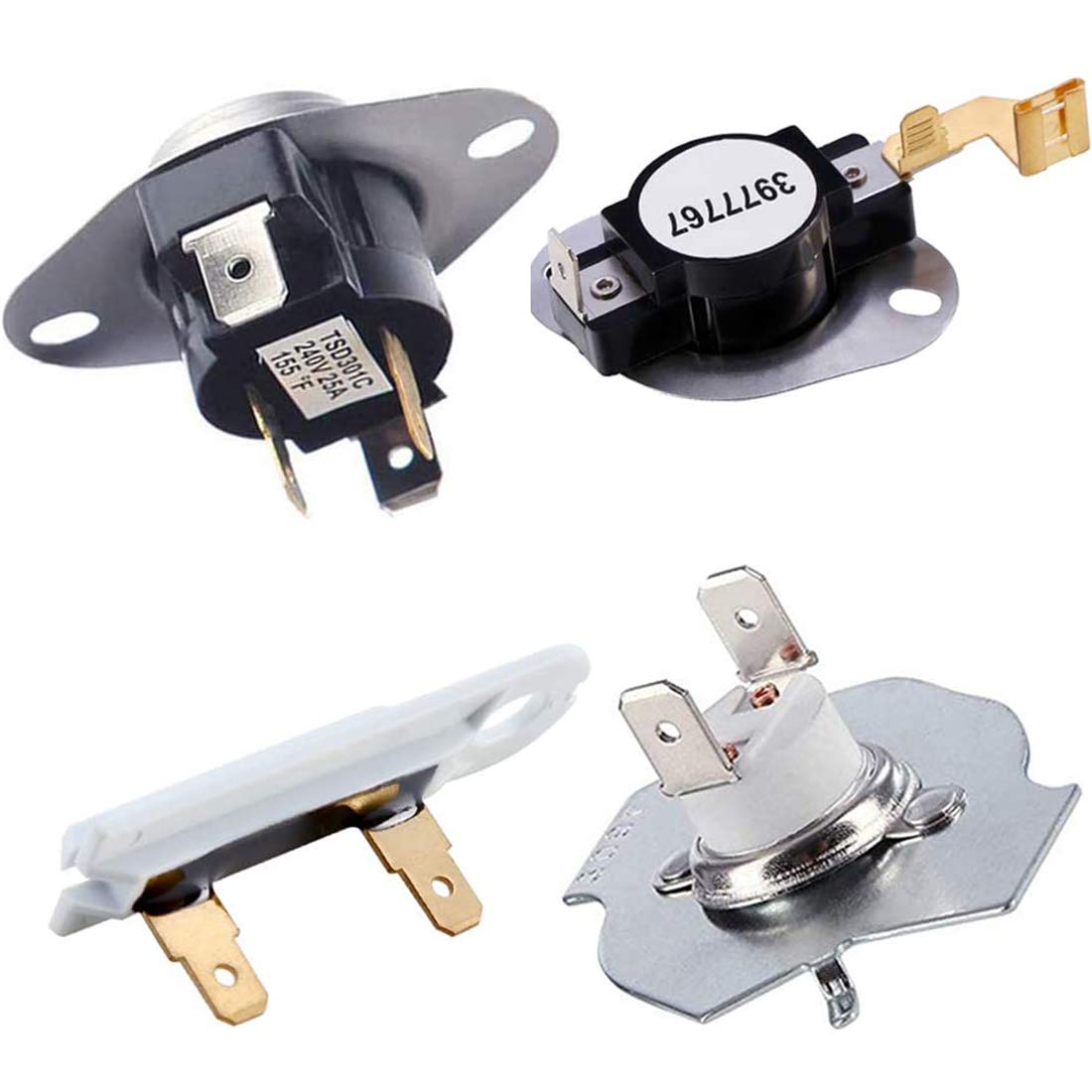

Dryer High-limit Thermostat

Dryer High-limit Thermostat

A dryer high-limit thermostat, also known as a safety thermostat or temperature-limiting thermostat, is a critical safety component in clothes dryers. It’s designed to monitor and regulate the temperature inside the dryer drum and exhaust system, ensuring that temperatures do not become dangerously high. When the thermostat detects excessive heat, it interrupts the electrical circuit, shutting off the heating element and preventing the dryer from operating until the temperature returns to a safe level.

Function and Operation: The primary function of a high-limit thermostat in a dryer is to prevent overheating and potential fire hazards by regulating the temperature. Its operation involves several key steps:

  1. Temperature Monitoring: The high-limit thermostat is positioned in a strategic location within the dryer, often near the heating element or exhaust system. It constantly monitors the temperature in its vicinity.
  2. Temperature Threshold: The thermostat is calibrated to a specific temperature threshold. If the temperature rises above this safe level, the thermostat responds by interrupting the electrical circuit, cutting off power to the heating element.
  3. Circuit Interruption: When the high-limit thermostat detects that the temperature has exceeded the safe limit, it opens its contacts, breaking the circuit and preventing the heating element from generating more heat.
  4. Automatic Reset or Manual Reset: Some high-limit thermostats have an automatic reset feature, which means they will close the circuit once the temperature returns to a safe range. Others require manual resetting after they have tripped to ensure that any potential problems are addressed before resuming operation.

Importance and Safety: The high-limit thermostat is a critical safety component that serves several important purposes:

  1. Fire Prevention: By interrupting power when temperatures become dangerously high, the thermostat prevents the risk of overheating and potential fires.
  2. Component Protection: The thermostat safeguards the dryer’s heating element and other components from operating under conditions that could lead to damage or malfunction.
  3. User Safety: Ensures that the dryer operates within safe temperature limits, reducing the risk of accidents and ensuring user safety.

Signs of a Malfunctioning High-Limit Thermostat:

  1. Dryer Not Heating: If the high-limit thermostat has tripped, the dryer may not produce heat at all.
  2. Inconsistent Drying: If the thermostat is faulty and not regulating temperatures properly, you may experience inconsistent drying results.

Replacing a Faulty High-Limit Thermostat:

If you suspect that the high-limit thermostat in your dryer is malfunctioning and needs replacement, you might consider the following steps:

  1. Unplug the Dryer repairs: Disconnect the dryer from the power source to ensure safety.
  2. Access the Thermostat: Depending on your dryer model, you might need to remove the dryer’s front or rear panel to access the thermostat location.
  3. Remove Old Thermostat: Gently disconnect the wires from the old high-limit thermostat and remove it from its mounting location.
  4. Install New Thermostat: Attach the new thermostat in the correct position, securing it with the appropriate mounting hardware.
  5. Reconnect Wires: Reconnect the wires to the new thermostat according to the manufacturer’s instructions.
  6. Test Operation: Plug the dryer back in and test it to ensure that it operates as expected.
  7. Reassemble the Dryer: If you removed any panels, reassemble the dryer in reverse order.

If you’re unsure about replacing the high-limit thermostat yourself or encounter difficulties during the process, it’s recommended to seek the assistance of a professional appliance repair technician. A functioning high-limit thermostat is essential for maintaining safe and efficient dryer operation.
